다이아프램식 컨트롤 밸브/Diaphragm Control Valve
제품모델 List
# On-Off or Shut-Off, # 컨트롤 밸브, #Globe 밸브, # Diaphragm Type, # 자동밸브,#Pneumatic Actuator
| 용도/기능 | Actuator type | Fluid | Material | End Connection& Pressure | Size | 모델번호 | |
|---|---|---|---|---|---|---|---|
| Body | Trim | ||||||
| • On-Off or Shut-Off 컨트롤 밸브 • Globe 밸브 |
• Pneumatic Actuator • Diaphragm |
• Water / Air • Gas, Steam • Oil |
• GC | • STS |
• Flange RF or FF 10K,20K,30K |
• 15~150 |

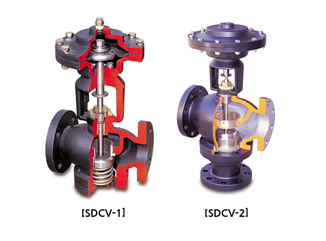

• SDCV-1 • SDCV-2 |
|

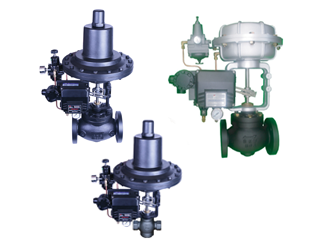

• Pneumatic Actuator • Diaphragm / 비례제어식 |
• Water • Air • Steam |
• GCD450 • SCPH2 • SCS13 |
• STS / PTFE |
• Flange RF or FF 10K,20K,30K |
• 15~150 | • SPCV-1 | |
